Copper clad sheet

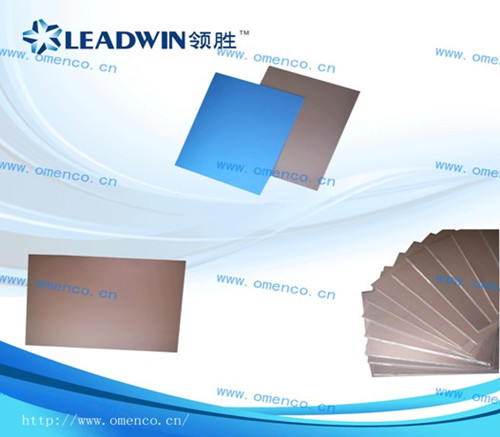

Aluminum copper clad




Type:  LJ01 (universal)

       LJ02 (high heat dissipation type)

LJ03 (high frequency high temperature resistant type)

Product features:

1Machine adopts high quality, high purity large enterprise aluminum plate material, aluminum purity meet more than 97% of the standard. Give full play to the aluminum radiator high performance.

2By anodic oxidation process surface, thickness in more than 10 um, surface silvery white light.

3The oxide layer thickness and density and even the layer thickness ensure that materials have good electrical insulation.

4The hardness of surface to ensure circuit board molding burr easy control. Mechanical processing high efficiency.

5Level 1 glass fiber cloth and uniformity of vertical on glue process ensure plank dimension stability, level off, without warping

6Copper foil actual thickness fully meet the national standard.



Areas of application:

1Power: DC/DC DC/AC AC/DC and high power supply

2Automobile, motorcycle: voltage regulator, ignition, automatic control system security, light transformation system

3Sound: output amplifiers, balanced amplifiers, preamplifier

4Electronic products: solid state relays, solid pressure regulating module

5Electric: LED lighting electrical appliances

Specification: 500 mm x 600 mm 600 mm x 1000 mm 500 mm x 1200 mm

Aluminum plate thickness: 1.00 mm to 4.00 mm thickness copper foil 35 um 70 um 105 um 140 um

The main performance indexes

Test project

Processing conditions

unit

Typical values

LJ01

LJ02

LJ03

Thermal

A

/W

1.82.0

0.350.4

0.350.4

Peel  Strength

After  thermal

stress

N/mm

1.85

1.7

1.7

Surface  Resistivity

C-96/35/90

MΩ

7×109

5×109

5×108

3×109

2×109

4×108

Dielectric  Breakdown

A

KV

20

20

20

1MHZ  Dielectric  constant At

Arc resistance into abnormal condition

1MHZ

3.8

3.9

2.7

1MHZ Dielectric dissipation

0028

0026

0009

Flammability

V-0

V-0

V-0

Arc resistance

S

250

250

250

CTI

-

225

225

225
