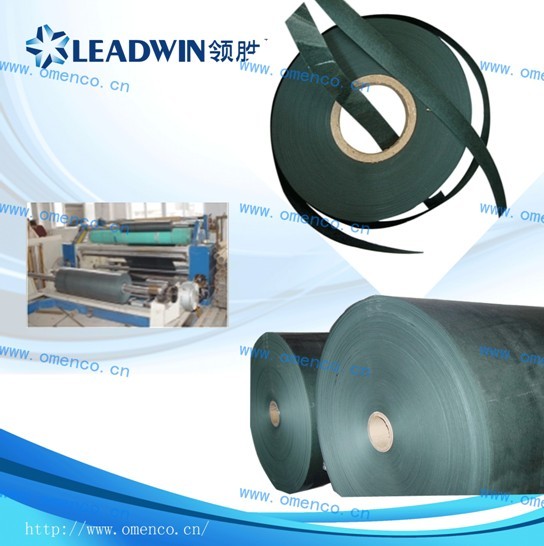

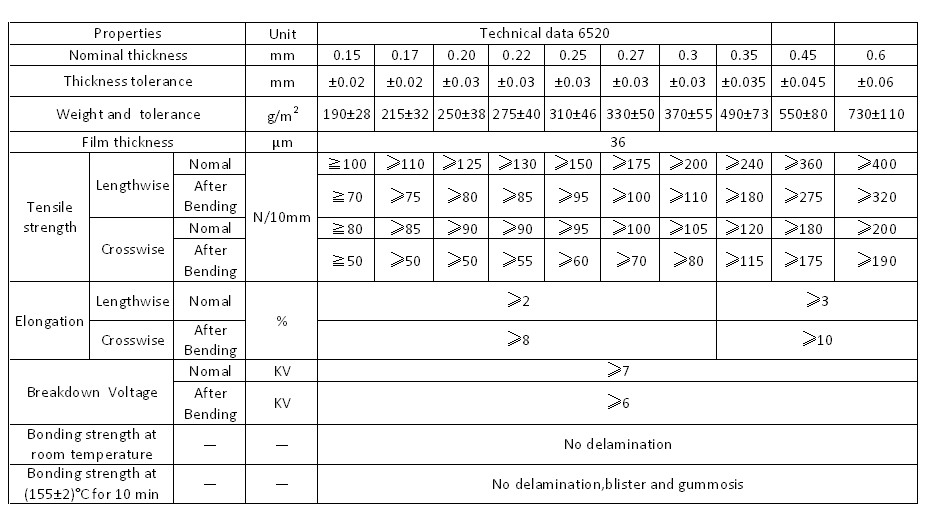

1. 6520 polyester film/fish paper composite material is made of electrical fish paper and polyester film layer formed by adhesive bonding 2. composite materials,heat level E grade.this material has a excellent performance in both electrical and mechanical properties. 3. Application: It is widly used for small motor and electrical insulation slot liner, gasket and turn to turn and layer insulation,liner insulation,transformer insulation,and other electrical insulation with termperature requirement not exceeding 130℃., 4. Certification: ISO Quality certification; SGS System Certification; Electrical machinery 5. Colour: Blue 6. Thickness: 0.15mm-0.60mm Width:1000mm ※Note: The values noted in below technical specification are given only for our customers’ reference and should not be used in writing specifications.
|
