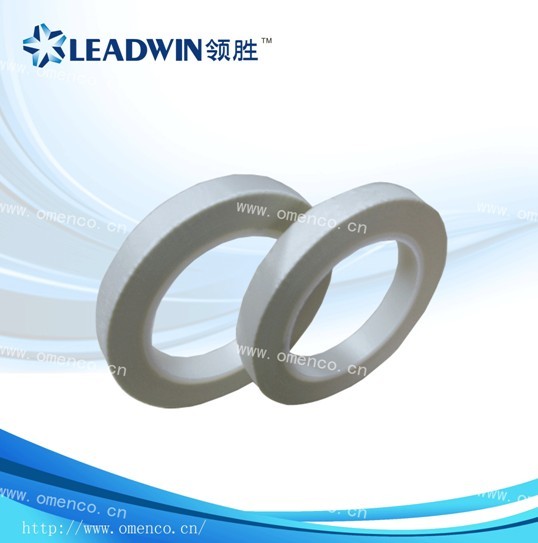

1. Nomex paper adhesive acrylic tape is made of Nomex Aramid paper coated with acrylic adhesive packaged in a 50m or 30m roll.Nomex adhesive tape has excellent sovent resistance and is conformable and flexible with superior ability to absorb resins and varnishes.It has very high temperature rating,good corona resistance,and flame resistance.It is used as insulation material of class F(155℃).

2.Application:

Nomex tape with Acrylic is used as insulation,holding,reinforcing and protecting for electric components,coils,capacitors,transformers,and motors,especially in high temperature and high voltage applications.It is also as a barrier to protect a system from the heat and splatter of solder.

3.Tape size:3" plastic core,5m length,from 5mm width upward.

Specical length,thickness or combinations can be supplied according to customer.

4.Shelf Life:To obtain best performance,use this product within 6 months from date of delivery and store under normal conditions of 16c to 27 c and 40 to 60% R.H.in the original carton.

5. Thermal class: F Glass(155 ℃).

6. The other size can be supplied according to customers' requests.

※Products can be supplied sheets or shapes according to customer drawing

※Note: The values noted in below technical specification are given only for our customers’ reference and should not be used in writing specifications.
